Narrow linewidth laser

The ECL Type narrow linewidth laser uses a unique external cavity structure and advanced packaging technology, with narrow line width, low relative intensity noise and low phase noise;

The device uses a standard 14-pin butterfly package, with high output power, high stability, high reliability, and long service life.

Download: Narrow linewidth laser

Download: Brighten Photonics Brochures

Features

Narrow line width;
Low RIN and phase noise;
High output optical power;
High stability

Applications

Optical fiber communication, coherent detection;
Microwave photonics research
Lidar
Microwave photonics research

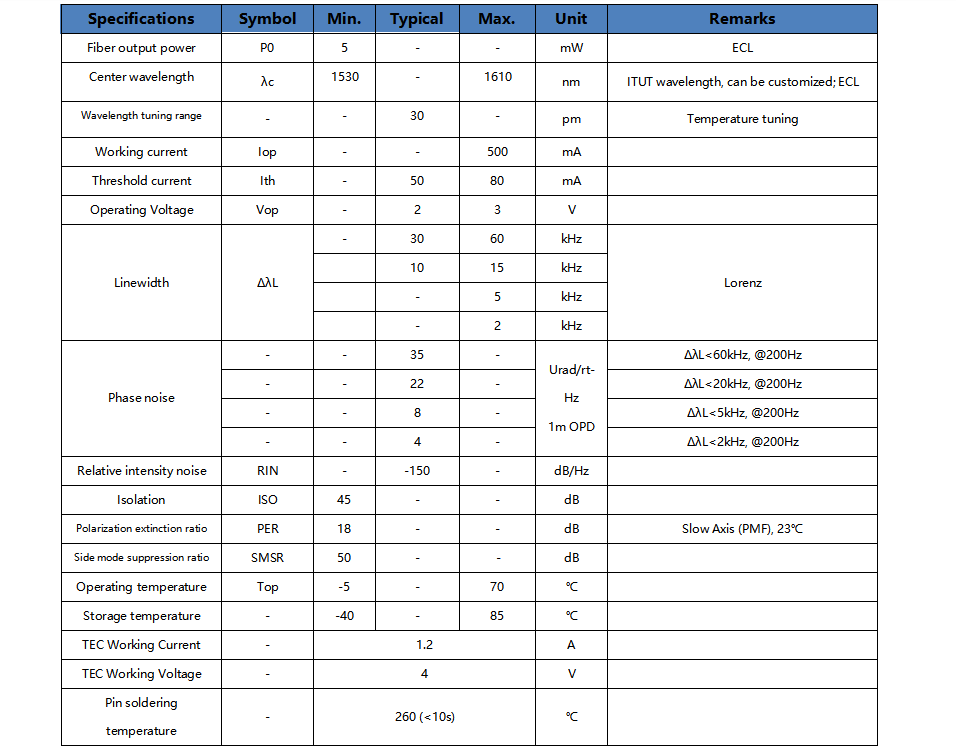

Specifications

Notes:

1. Looking for more detail technical supporting & parameter , pls contact us @sales@brightenphotonics.com .
