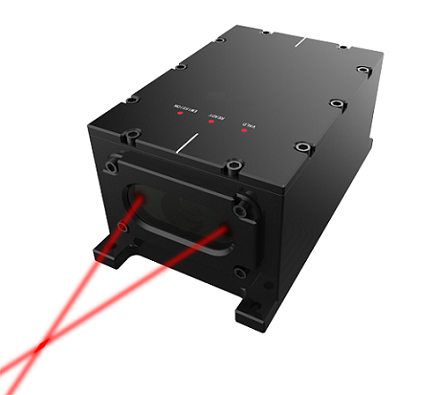

Laser Doppler Speed Meter Solution

Laser Doppler Speed Meter Solution
Laser Doppler Speed Meter Solution

In relevant industrial automation production, precise length measurement and precise speed measurement and control are necessary to optimize the production process. This product can effectively improve product quality, product process, production efficiency, and also save the use of material costs.

Due to its "non-contact" measurement characteristics, there is no wear and tear, not only can the maintenance cost of the production line be minimized, but also the reliability and product quality of the assembly line can be significantly improved to ensure that your product specifications are accurate. Greatly reduce production costs, you can improve the company's competitive advantage, will provide you with accurate process control solutions.

The applications: Industrial production & Rail transit & Metallurgical industry and rolling mill products

Features
  • Using the all-fiber solution, product miniaturization
  • Using high precision and high speed AD sampling
  • High-speed FPGA solution, high precision and low noise
  • Use eye-safe infrared 1550 nm light source
  • Automatic detection of direction, can measure "0" speed
  • Reliable measurement on almost any surface
  • Anti-electromagnetic interference, reliable and stable
Parameter:
  • Minimum measuring speed (m/min): 0 / Maximum measurement speed (m/min): 20000 / Unit of measurement: m/s, m/min, ft/s
  • Precision: better than 0.05% / Repeatability error: better than 0.02%
  • Direction detection: Automatic direction detection
  • Signal output: AB pulse, RS232, RS422, RS485
  • Direction detection: Automatic direction detection
  • Power supply voltage: 20 ~ 28 VDC / Power consumption: 5W / Protection level: IP67
  • Temperature range: 0-45℃ (plus protection box can adapt to more harsh environment)
  • Anti-electromagnetic interference level: standard level four

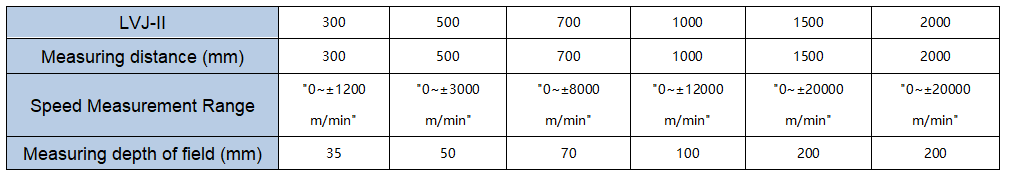

Specifications
Laser Doppler Speed Meter Solution

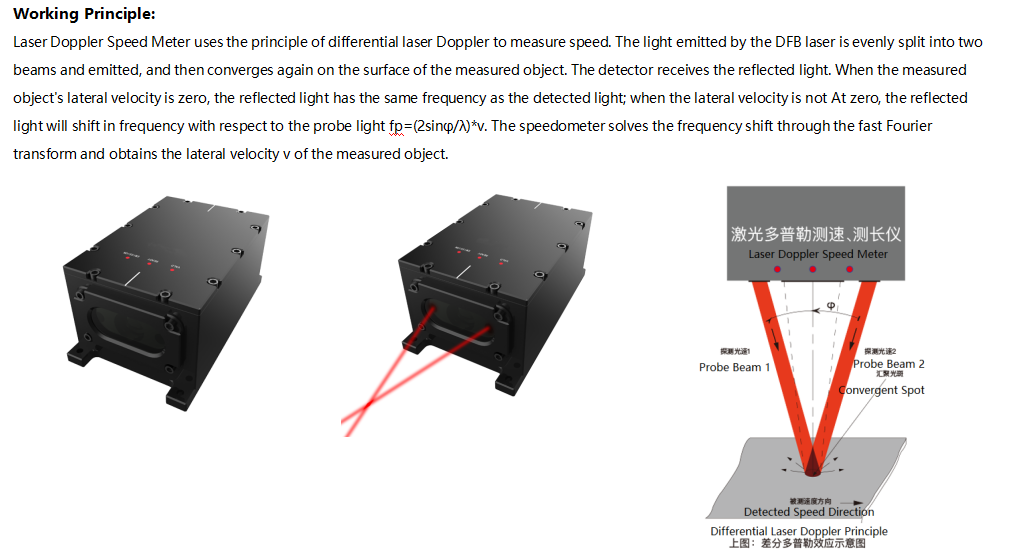

Working Principle:

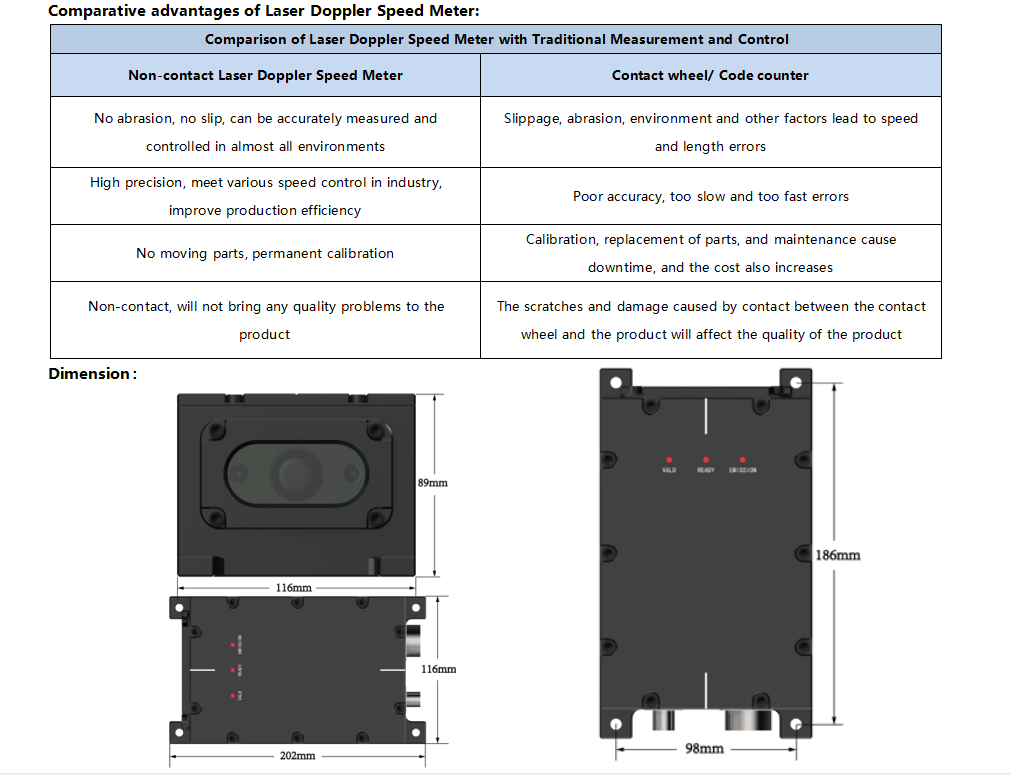

Comparative advantages of Laser Doppler Speed Meter Solution & Dimension:
Notes:
  • 1. Looking for more detail technical supporting & parameter , pls contact us @sales@brightenphotonics.com .
