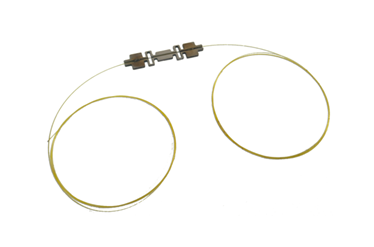

FBG-S Micro Strain Sensor

The FBG-S micro strain sensor is based on fiber grating sensing technology and use unique elastomer design. The FBG is fixed on the stainless steel base or flexible base in a pre-tensioned state. The FBG-S micro strain sensor uses glueless packaging technology to ensure long-term reliability of the sensor.

Download: FBG-S Micro Strain Sensor

Download: Brighten Photonics Brochures

Features

Metal or non-metal packaging can be provided
The same strict quality standards as traditional electrical sensors
Integrated package to protect pigtails and eliminate residual stress
Quick, easy to install and reusable
Fiber output at both ends, multiple sensors can be connected in series on one fiber
Sensor mounting and protection process is the same as traditional strain gauges

Applications

Long-term Security monitoring of buildings, bridges, dams, tunnels
Long-term Security monitoring of ships, spacecraft, trains and other complex structures
Structural surface strain measurement
Experimental mechanics assessment requiring multi-point sensor

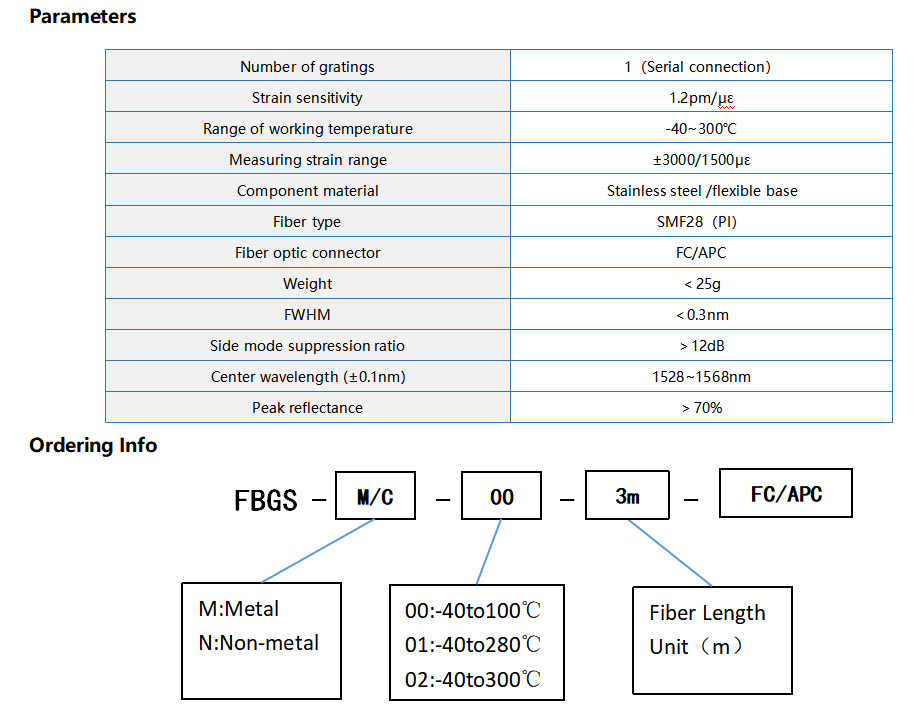

Specifications

Notes:

1. Looking for more detail technical supporting & parameter , pls contact us @sales@brightenphotonics.com .
