Micro inline Polarizer

Micro inline Polarizer

An in-line polarizer converts natural light into linearly polarized light or enhances the extinction ratio of linearly polarized light. The polarizer is designed and manufactured by patented technology and has the smallest size in the world. The wavelength covers 400nm~2000nm, which can be widely used in optical fiber sensing systems and high-speed traffic systems.

Features

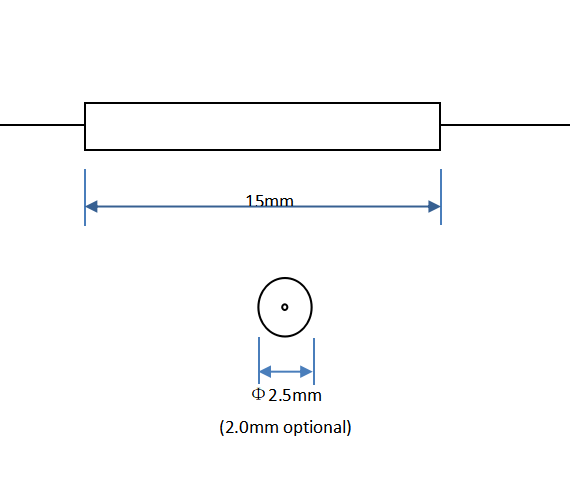

  • Compact package φ2.5X15mm (φ2.0X15mm optional)
  • low insertion loss
  • Low TDL, low WDL, low PDL
  • High reliability and stability
Applications
  • EDFA
  • Optical communication system
  • CATV system
  • Fiber laser
  • Optical fiber sensing system

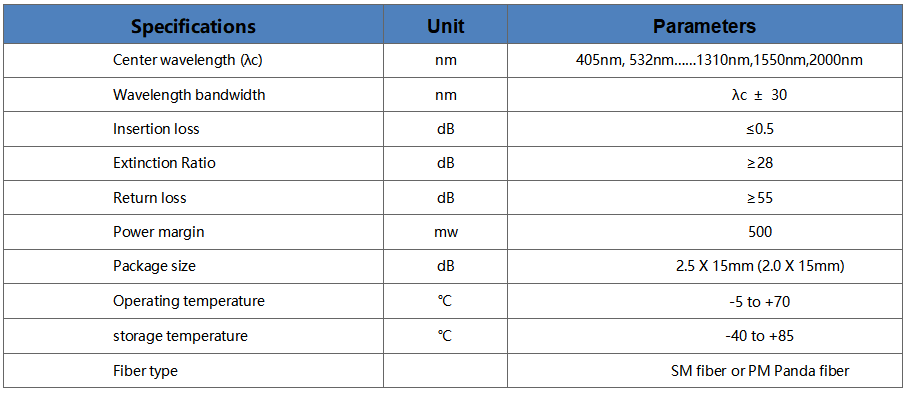

Specifications
Notes:
  • 1. Looking for more detail technical supporting & parameter , pls contact us @sales@brightenphotonics.com .
