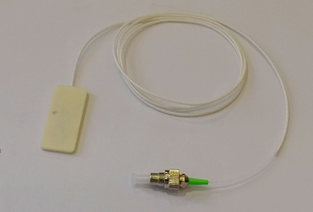

FBG-A Accelerometer Sensor

FBG-A is a fiber-optic accelerometer based on Fiber Bragg Grating (FBG) technology. The optimized design makes it suitable for acceleration detection of large structures, ranging from 0 to 1 kHz. It can be designed into two-dimensional and three-dimensional combinations by different structures.

Download: FBG-A Accelerometer Sensor

Download: Brighten Photonics Brochures

Features

As strict as traditional sensors
Not subject to electromagnetic interference
Teflon pigtail protection, the sensor is tightly sealed
Mounting blocks are available for two or three axis mounting

Applications

Long-term Security monitoring of bridges, dams, buildings, tunnels, ships, spacecraft, trains and other complex structures
Structural surface strain measurement
Vibration, displacement and acceleration detection under strong magnetic field or in insulation-required conditions.

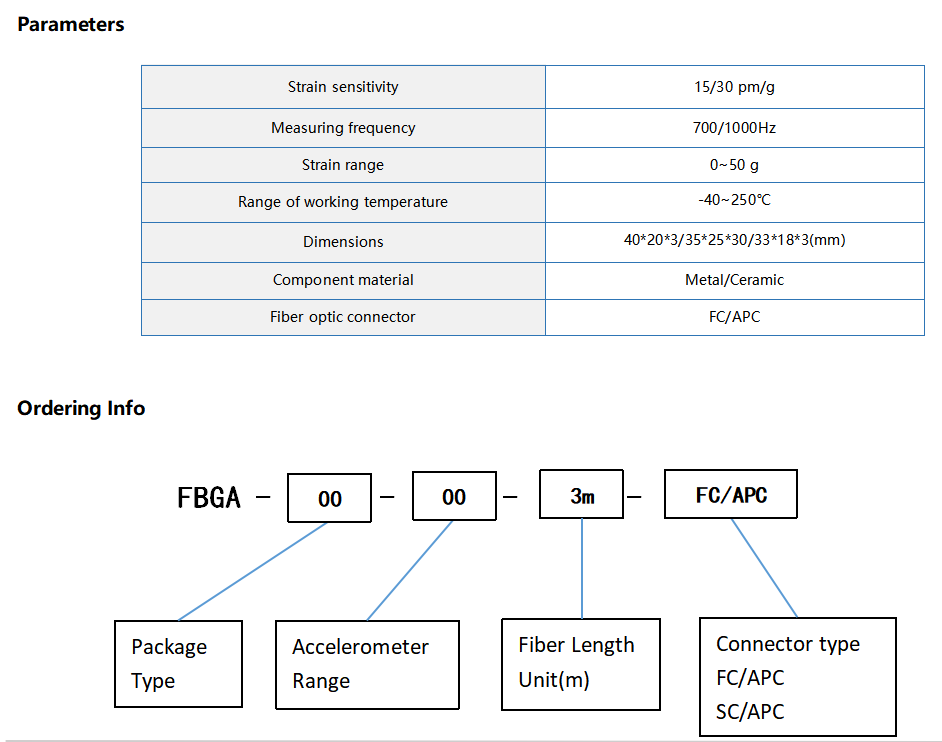

Specifications

Notes:

1. Looking for more detail technical supporting & parameter , pls contact us @sales@brightenphotonics.com .
