Bidirectional Pulse Amplifier

Bidirectional Pulse Amplifier

Pulse Optical source PLM1500 are developed based on MOPA technology, which integrates automatic power gain control and automatic temperature control circuits to ensure the stability of the output spectrum and power. The peak power of the light source can reach 30W, and the pulse width is less than 10ns.

Features
  • High reliability
  • Wide operating wavelength range
  • Low noise figure
  • Internal light control
  • High output peak power
  • Good temperature adaptability (-20 ℃ ~ 65 ℃)
Applications
  • High-speed optical communication system
  • OTDR system
  • Nonlinear research
  • Space optical communication system

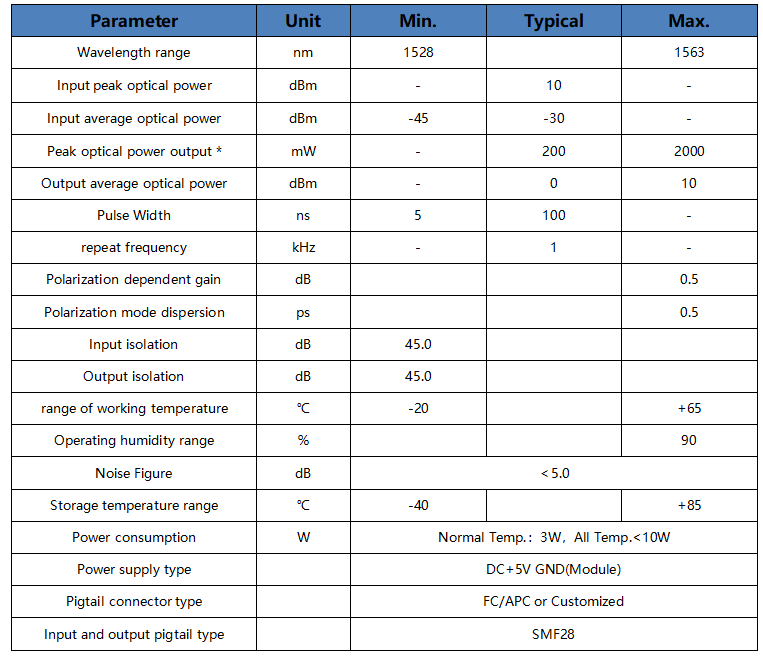

Specifications
Notes:
  • 1. Looking for more detail technical supporting & parameter , pls contact us @sales@brightenphotonics.com .
