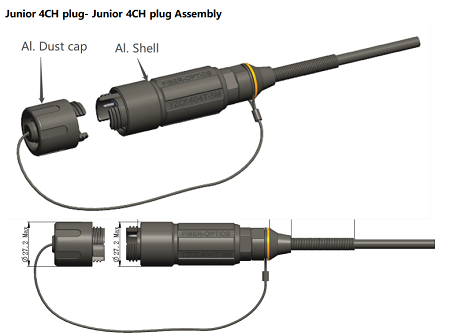

Junior expanded beam fiber optical connectors have been designed for use in the most demanding harsh environment applications including military tactical communications, outside broadcast, petrochemical plant, mining, and offshore systems. The connectors are terminated using an epoxy-polish ferrule termination process with standard fiber optic termination tools and equipment. the terminated ferrules are simply inserted into the expanded beam housing and fixed in place via a spring and cover-plate. Ferrule alignment to the lense is achieved by our unique optical alignment technology with ultra-low insertion loss and very high return loss. In the event of the connector suffering severe damage in use, the connector design enables replacement of the expanded beam insert,connector front body and grip ring without the need to re-terminate the fibers. The Junior expanded beam connectors offer high performance, flexibility and cost effectiveness, combined with a simple termination process allowing rapid in-field termination and repair.
In the event of the connector suffering severe damage in use, the connector design enables replacement of the expanded beam insert,connector front body and grip ring without the need to re-terminate the fibers.
The Junior expanded beam connectors offer high performance, flexibility and cost effectiveness, combined with a simple termination process allowing rapid in-field termination and repair.
